Specification:
5050 RGB LED strip light:
Model: High Quality 3SMD-5050 RGB module
Operating voltage: DC12V
Viewing angle: 160°
Emitting color: RGB
Luminous flux:20-22LM
Grade of Waterproof: IP68
Working Temperature: -20°to 50°
Extension wire each module: 8.4cm
Total length of EACH module with Extension wire:0.52 feet ,
Dimension: 90.5x14mm
DC12V 20A Switching Regulated Transformer Power Supply Driver:
Input: AC110-220V 50/60Hz
Outputvoltage: DC 12V 20A
Waterproof: not waterproof , not suggest to use it outdoor
Protections: overload/ over voltage/ short circuit
Cooling fan: Without Cooling by free air convection
DC12V-24V 12A 144w 44key remote and controller:
Input/output voltage: DC12V
Remote distance MAX: 10 meters
Output voltage: DC 12/24V
Output current: 4A max each color
Output power: 5V:<60W, 12v:<144W, 24v:<288W
Connect mode: Common Anode (No common cathode type)
Working temperature: -20~60C
Total Outputof Current: 12A
Remote function: 20 colors, 8 Light Pattern: Quick / Slow / Auto

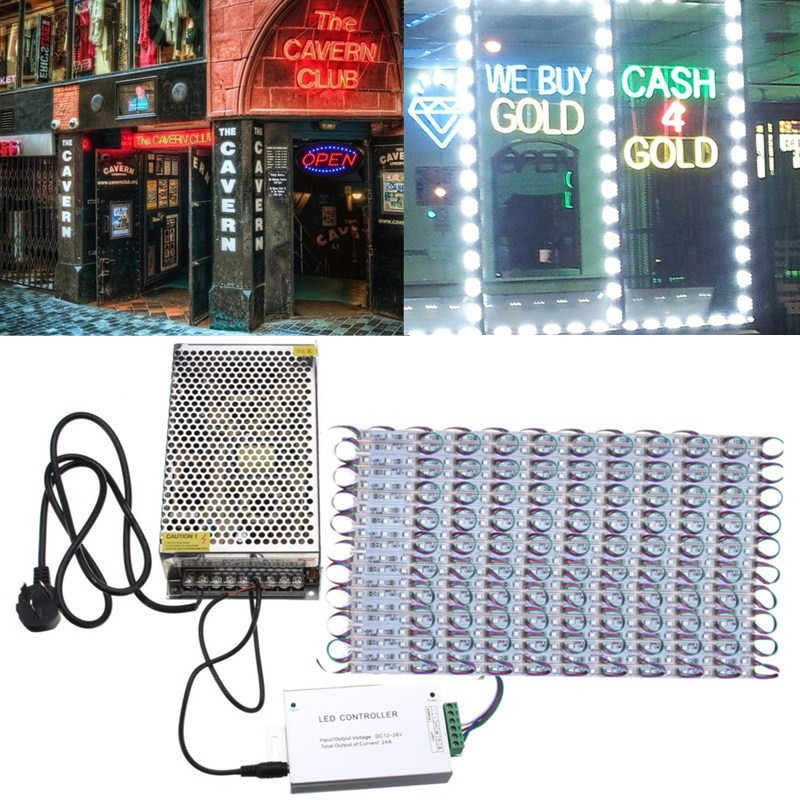

Package Included:
1 x 200pcs RGB module
1 x mini 44Key IR remote
1 x 24A LED controller
