| Parameter data | |
| FrequencyRange | 3G/4G | 700--2010MHz 2100-2300MHz 2500-2690MHz |
| Type | SMAMale |
| Brand | Bakeey |
| [===Not sure which Frequency your Phone Works ?===] |
| ElectricalSpecifications |
| Polarization Type | Vertical |
| Gain (dBi) | 35dBi |
| Bandwidth (MHz) | 700-2650MHz |
| Power Capacity(w) | 50 |
| Input Impendence (Ω) | 50 |
| V.S.W.R | ≤1.5 |
| Mechanical Specifications |
| RF Connector | N-Female N |
| Dimensions (D*W*H ) | 14.5*14.5*2.1CM |
| CableLength | 2M |
| Radiator | Cuprum |
| Net weight | 290g |
| Connect Type | TS9 |
| Environment Conditions | IP40 |
| Humidity | < 90% |
| Operating Temperature | -40°C~ 60°C |
| For Reference | Router ofHuawei E5375,E5373 |

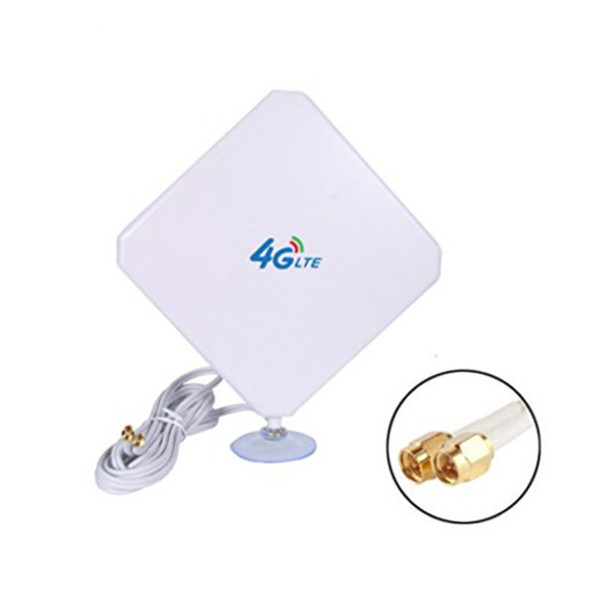

| Product included | 1*35dbi 4G Antenna |
| 1*SMA male antenna |
| 1*mounting accessories |
| 1*user manual |
If you want the TS9 Plug, please click here:
Mobile Signal Booster Amplifier TS9 Plug For Huawei E5375 E5373Signalrepeater installationdiagram:How to install repeater (very easy and simple):Step 1: Use your mobile phone to test signal strength outside house or on roof, -70dbm is the basic requirement (full bar).
Step 2: Install outdoor antenna in that location and keep adjusting, point it to signal tower station, try to get the best signal.
Step 3:Run outdoor coaxial cable into building in a convenient location to connect with signal repeater.
step 4:Mount your indoor antenna with signal repeater
step 5: Power up signal repeater device to check the signal inside, moving outdoor antenna until you get a satisfied signal.
Note:It's a 3G/4G Antenna,use for receive 3G/4G signal indoor.(Only has function when your location has 4G/4G signal indoor)
Be sure to check specifications, compatibility and connnector before ordering.
Signal problem & installation technique support:1.If signal still weak after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger
signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly
.And connectors
works well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance
of10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise the wet will reduce the signal cover area.
