Specification:
Voltage:DC12V
Output wattage:4 pin RGB (up to 72W)
Current:6A
Control:infrared remote
Feature:
20 color keys
6 DIY custom color keys
12 animation/function keys
Compatible with all DC12V RGB multicolor LED strips light
Instruction:
Connect your DC12V supply to the DC jack input
Connect your DC12V RGB LED strip light to the 4-pin output, making sure to align the arrows
Remove the plastic tab from the battery compartment of the remote
DIY color instruction:
Press a DIY color button (1-6)
Use the red, green and blue up and and down keys to add or subtract color (start with subtracting)
Press the original DIY key again to save you color
Start with white and remove red and green in equal parts for cool white
Start with white and remove two parts blue and one part green for warm white

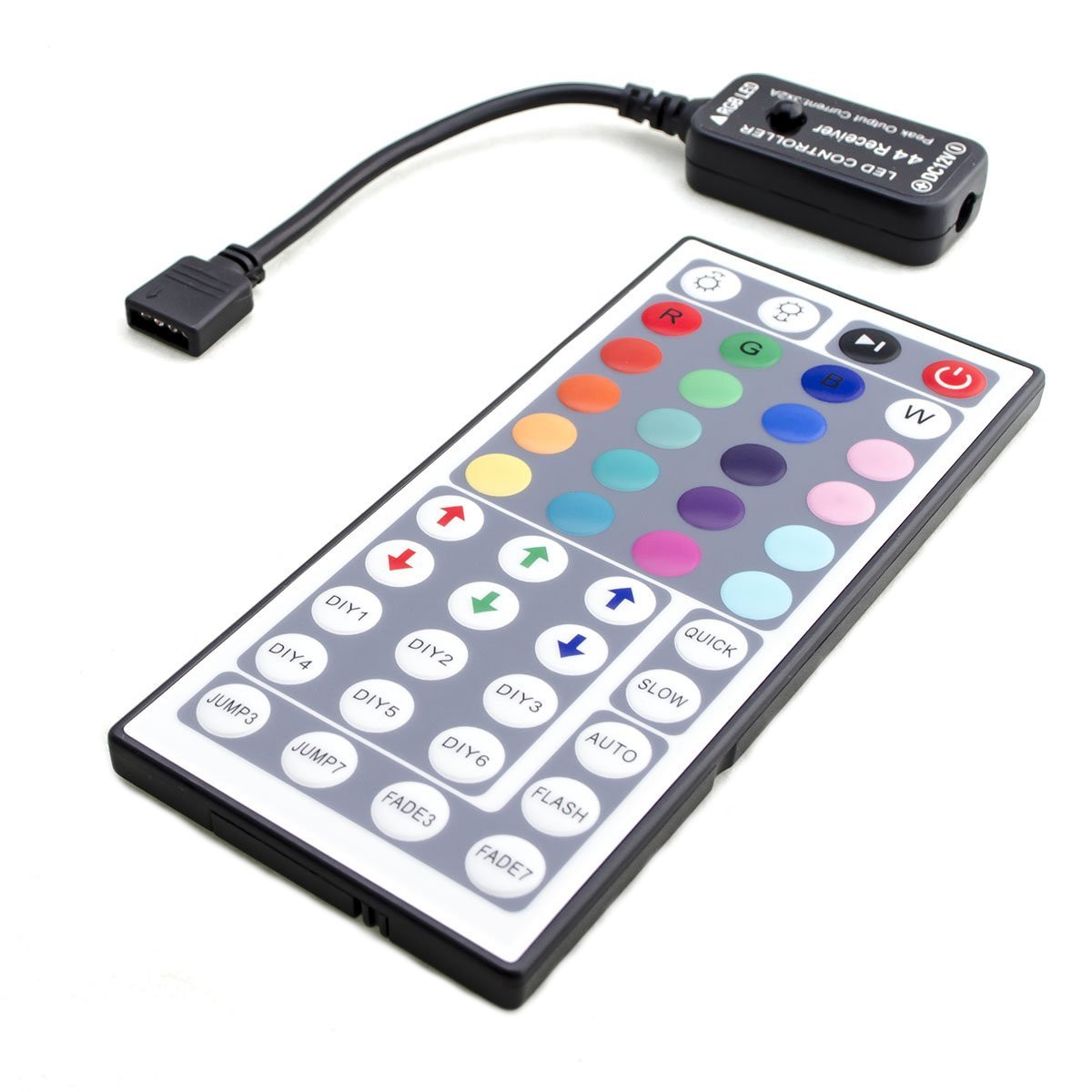

Package included:
1*44keys remote control
1*4 pins IR controller
