Specification:
Supply voltage:DC12V
Operating current:<60mA
Interface type:plug-in
Signal mode:RF
Protection class:IP20
Working temperature:-20-60â„?
Controller size:L122*W71*H24mm
Remote control size:L90*W36*H15mm
Control range:15M
Effect mode:133 kinds
Is battery included:no
Maximum control points:low speed:1024 points, high speed: 2048 points
Controllable IC type:WS2812 WS2811 WS2801 LPD6803
Feature:

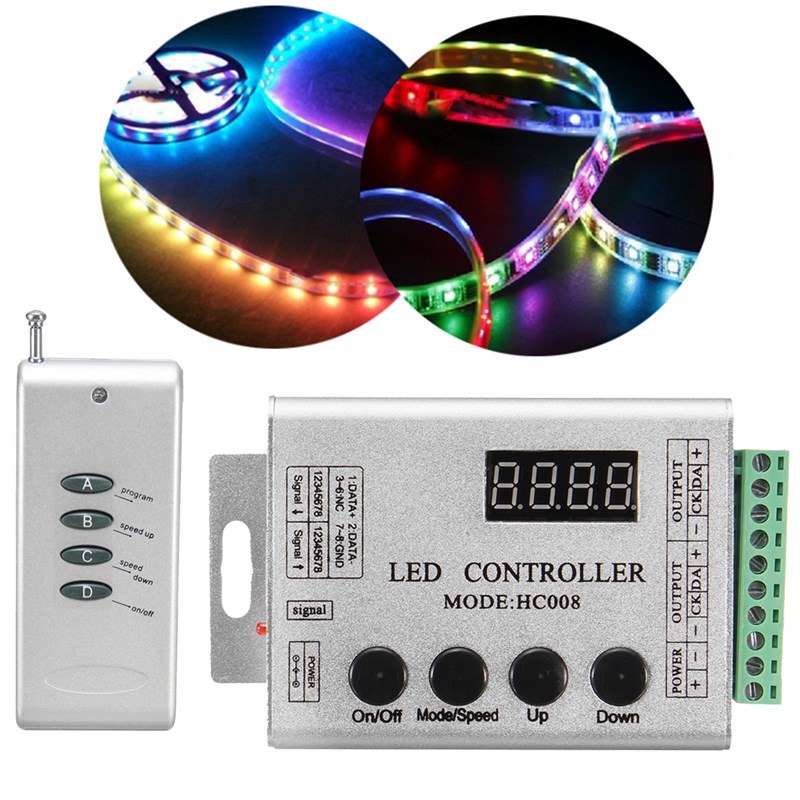

The HC008 controller is suitable for applications where the UCS1903 (TM1804, TM1809, etc.) outputs direct drive LEDs.
Can be widely used in light boxes advertising, stage sets, home decoration and so on.
With easy wiring, easy to use and so on. With memory storage function.
Can be controlled by RF remote mode selection, brightness adjustment, speed adjustment and other lighting dynamic effects.
At the same time can be connected to multiple controllers for synchronous control, and constantly expand the output channel to achieve more dimming or a variety of program changes.
Precautions:
1,The product supply voltage is DC12V, shall not receive other voltage.
2, The lead wire should be in accordance with the wiring diagram to provide the color and label, the correct wiring.
3, This product can not be overloaded.
Package included:
1*LED strip controller
1*4-key remote control(battery not included)
1*instruction
