Specification:

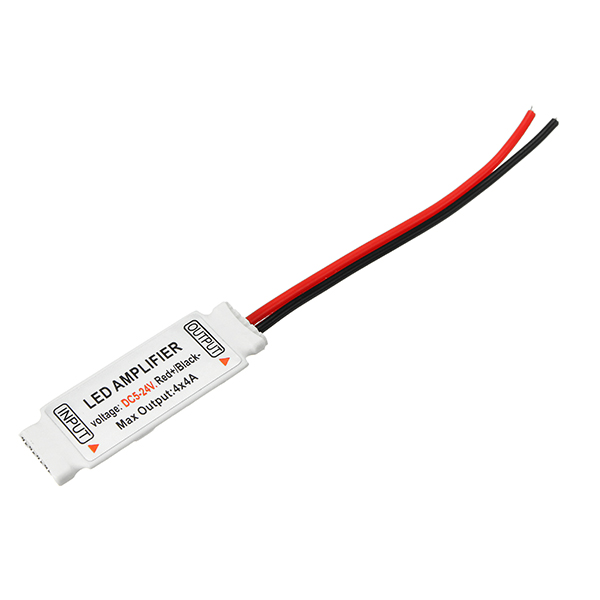

Item Type:RGBW amplifier
Voltage:DC5-24V
Connecting mode:common anode
Max. output current:4x4A each color
Max wattage:80W(5V) 192W(2V) 384W(24V)
Working Temperature: -20 ~ 60â„?
Material: Plastic
Feature:
The RGBW amplifier applies to the voltage-controlled LED controller; it can receive PWM (Pulse Width Modulation). Each time add one RGB amplifier, the connecting number of LEDs will be more than twice.
Receive RGBW signal from LED controller and send the signal to another group of LED source
Extend 10 meters of SMD5050 30LEDs/m RGB LED Strips/ 5 meters of SMD5050 60LEDs/m RGB LED Strips
Package Included:
1*RGBW led amplifier
