Description:

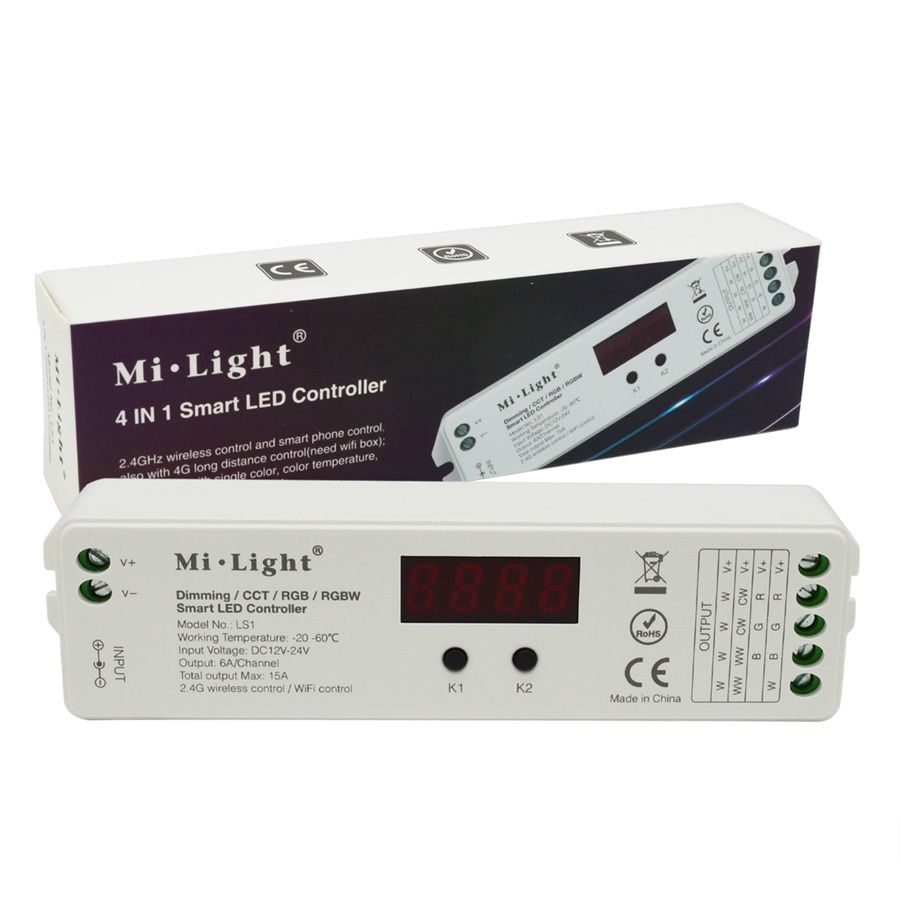

4in1( single color&CCT&RGB&RGBW)smart strip controller is our newly developed high-end Led controller controlled by wireless remote controller, also with smart phone control and 4G long distance control( need WIFI box). The controller has auto-transmitting and auto-synchronizing function and with brightness, CCT, RGB and RGBW output mode. This controller adopt the widely used 2.4GHz wireless technology with the feature of low power consumption, long signal transmitting and strong anti-interference,etc. One consumption remote control many controllers at the same time. Widely used on the controlling of hotel lighting and home lighting.
Specification:
Voltage: DC12-24V
Output Max: 6A/Channel
Total output max:15A
Working temperature: -20-60°
Control distance: 30m
Size: 138*35*23mm
Link/unlink:
Link:Turn off the power, then turn on again. Press "ON" 3 times within 3 seconds. The led light blinks 3 times slowly when it is done
Unlink:Turn off the power, then turn on again. Press"ON" button 5 times within 3 seconds. The led light blinks 10 times swiftly when it is done
Function:
1. Display function instruction: This controller adopt 4bits digital tube to show the output mode. ID number and Group number
2. Display LED1-4(output mode)
Led1. Indicate 1 channel output, compatible to single color Led strip, brightness dimming
Led2. Indicate 2 channel output, compatible to CCT Led strip, brightness, dimming and CCT adjustable
Led3.Indicate 3channel output, compatible to RGB Led strip, color changing and brightness dimming
Led 4.Indicate 4 channel output, compatible to RGBW Led strip, color changing and brightness dimming
Display 0000: Indicate the current controller ID number
Display CH00: Indicate the current group number
Package included:
1*led controller
