Features:
1.Applicable to family, office space, hotels, large buildings bottom and other indoor places.
2.It can effectively expand the coverage area, without the interference of base station.
3.Effectively reduce mobile phone radiation on the human body.
4.Extend mobile phone battery time and life.
5.Convenient installation, mail order and according to the specific application of flexible configuration.
6.Casting integration, fully enclosed shell, beautiful and durable.
7.Using advanced digital filter, high end chip, stable and efficient.
8.Product environmental protection, small volume, low cost.
9.Full duplex, up/ down a high degree of isolation.
10.Convenient installation, mail order and according to the specificapplications of flexible configuration.

Specifications:
1.Frequency f(MHZ):
(1)GSM: TX: 890-915, RX: 935-960
(2)DCS: TX: 1710-1785, RX: 1805-1880
(3)3G/ WCDMA: TX: 1920-1980 RX: 2110-2170
(4)PCS: TX: 1850-1910 RX: 1930-1990
(5)CDMA: TX: 824-849 RX: 869-894
2.Gain(dB): 55 60 65 70
3.Band(dB): ≤3DB
4.Output Power: ≤27+-3dbm
5.Stray Radiation: ≤-36dbm
6.Time delay: ≤5usec
7.Intermodulation: 9K-1GHZ ≤-36dbm, 1G-12.7GHZ ≤-33dbm
8.Power Supply: AC 110-240v Dc+
9.Type of Joint: N-k
10.Noise: ≤3dbm
11.Temperature: -10-60℃

Installation Steps:
1.Use the mobile phone in outdoor antenna location finding the strongest signal pay attention to lightning protection of outdoor antenna.
2.Seclect the appropricate location of outdoor antenna, outdoor antenna fixed on the wall or the bracket.
3.Select the appropriate location of indoor antenna, and install a host device, fixed in the wall or the bracket.
4.Outdoor antenna connected to a host of outdoor (BST) interface, Tighten the joint.
5.Determine the indoor antenna installation location, indoor antenna away from the windows(balcony)4 meters above, in order to prevent circulatory disorder, equipment is not running.

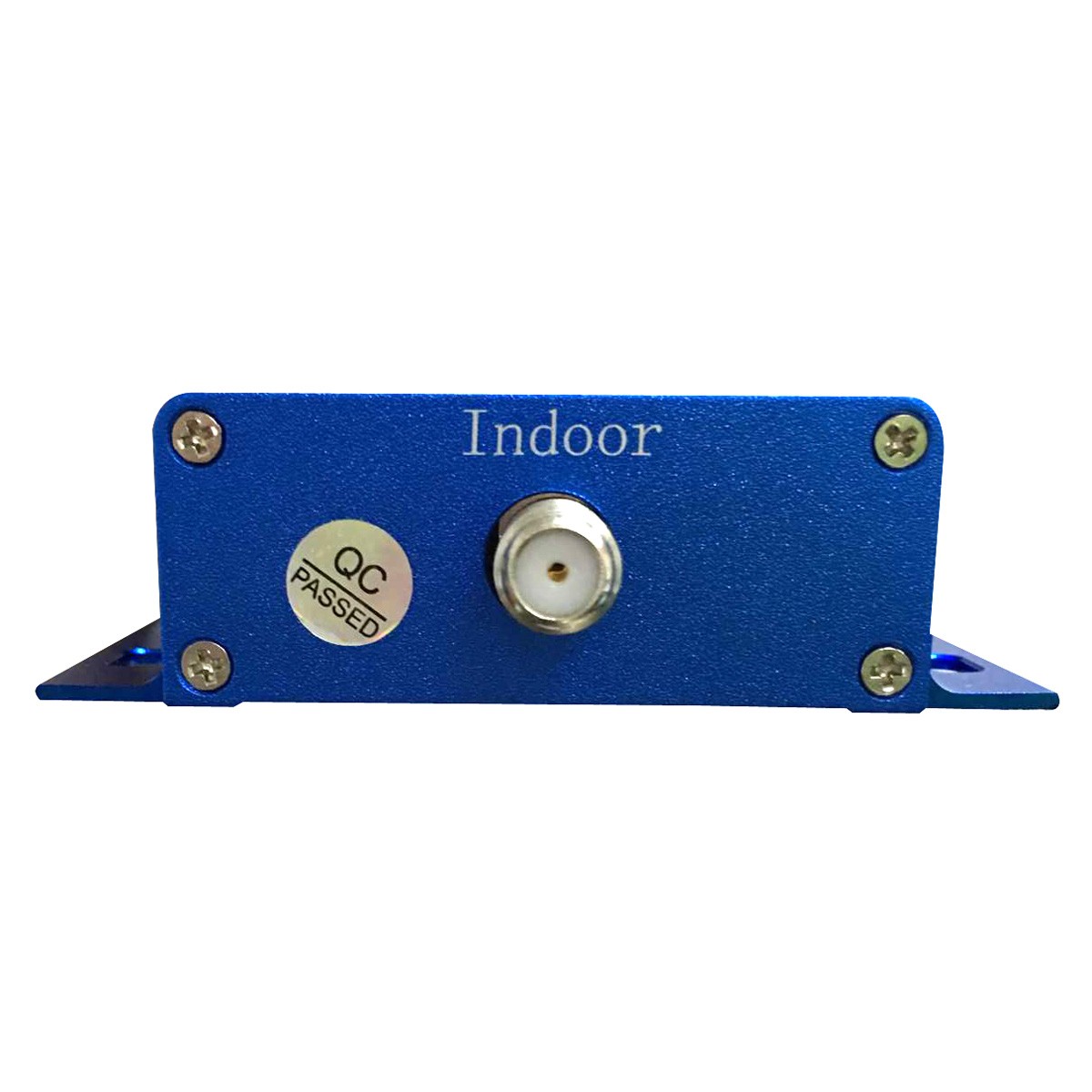

6.Indoor antenna connected to a host of indoor (mobile) interface, tighten the joint. Turn on the power.

Package Included:
1 x CDMA980 RF Micro-power Repeater
1 x Outdoor Yagi Antenna with 10m Cable
1 x Ceiling Antenna with 3m Cable
1 x ChargerUS Plug
1 x Set of Screws
1 x User Manual
