Specification:
Voltage:DC12-24V
Wattage:240W(12V), 480W(24V)
Maximum load current:5A/CH*4CH
Output gray level:256
Input signal:DMX512/1990
Output signal:4 channels constant PWM
Output DMX:4 channels
Size:L147*W63*H40
Feature:
There are 4 output channels, can connect with single or RGBW lamps
0-100% dimming output, each channel 256 gray levels
International standard DMX512 input protocol, address code set by DIP switches;
Each occupied by 4 DMX address.
Installation Notes:
This kind of controller works only under DC12V-24V, which is provided by the matched controllable main power, or else the controller will be damaged.
The UTP wire is connected hand in hand to make the cable, when two or more controller connected.
The power supply should be off when connecting the electric wires, and it can be turned on till making sure the wires are connected correctly and the indicator of main power in red is lighting.
Controller should work under the environment of adequately ventilated, dry, not corroded, no flammable gas and rust.
Please check the wires connection regularly so that the wires of aged, rust-eaten, and damaged insulation spacer can be replaced timely
Package included:

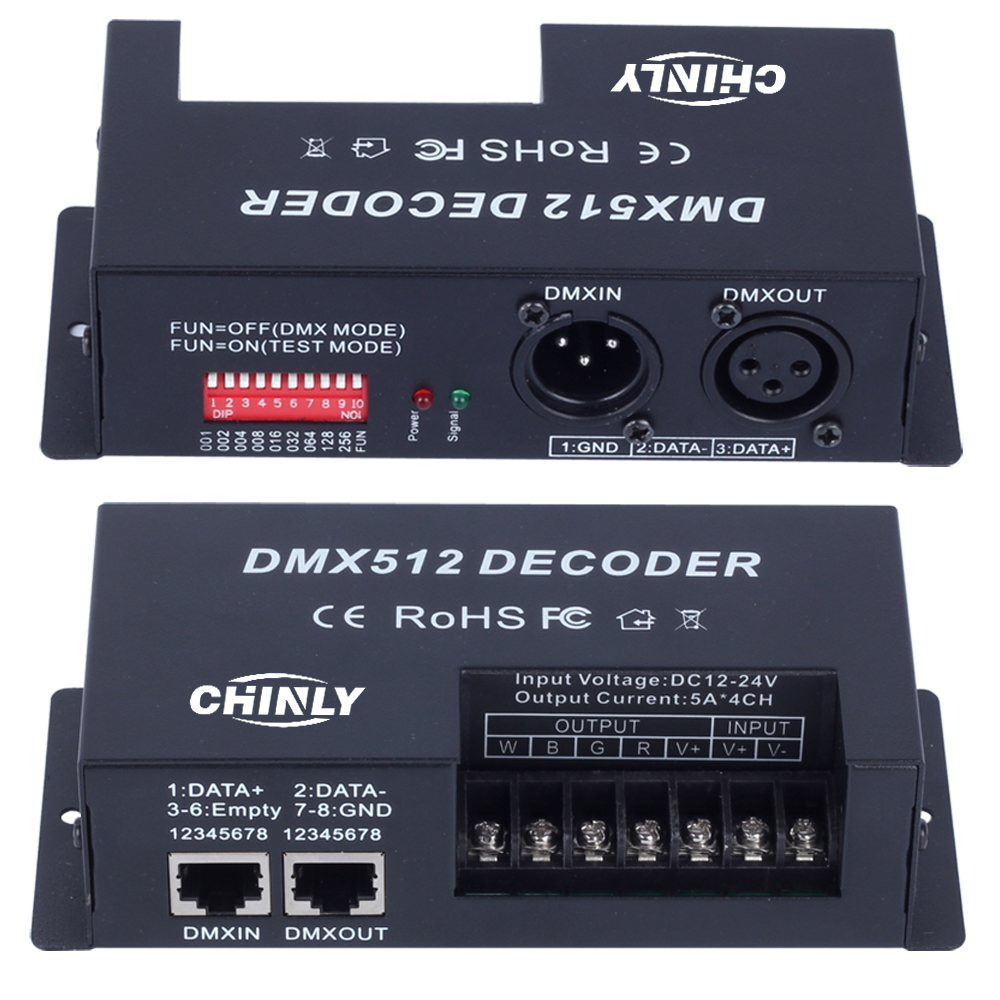

1*DC12-24V RGBW 4 channels DMX512 decoder
