Specification:
Voltage:DC12-24V
Output max:5A/channel
Total output Max:15A
Output connection:common anode
Working temperature:-20-60
Size:L86mm*W86mm
Feature:

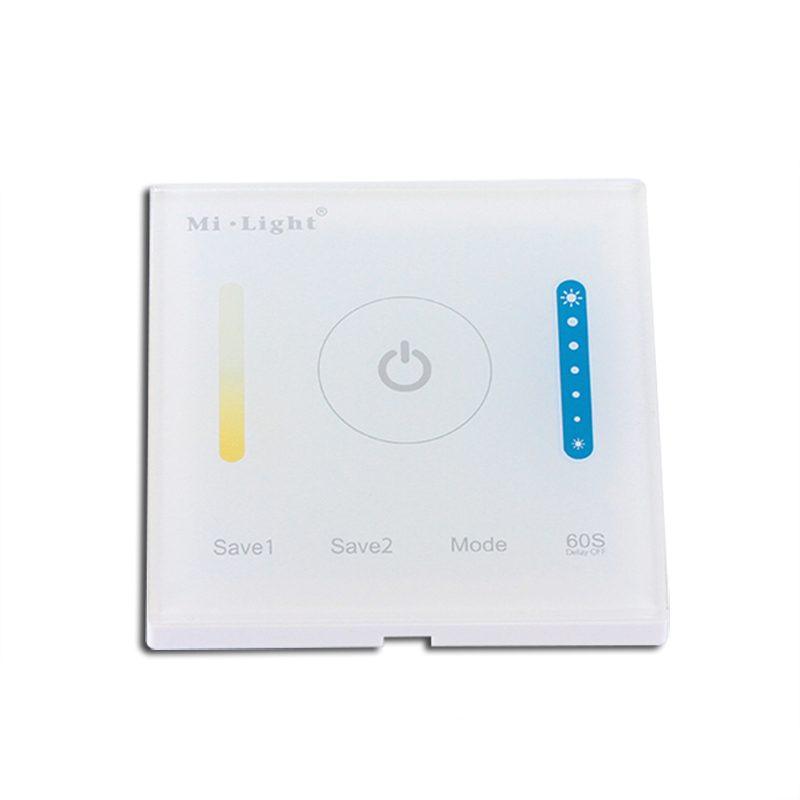

Smart panel controller is a newly high-end controller. The appearance is made of a pretty and fashionable glass panels.
It adopts a high precision capacitivetouch screen IC. Touch screen is very stable.
Also it has memory function(Turn off the light, then turn on again, the lamps will keep the same light as before).
Brightness and CCT adjustable, made of fashionable glass panel. Adopt a high precision capacitivetouch screen IC.
Widely used on the controlling of led strip, panel light, etc.
Package Included:
1*P2 mi light touch panel switch
