Specification:

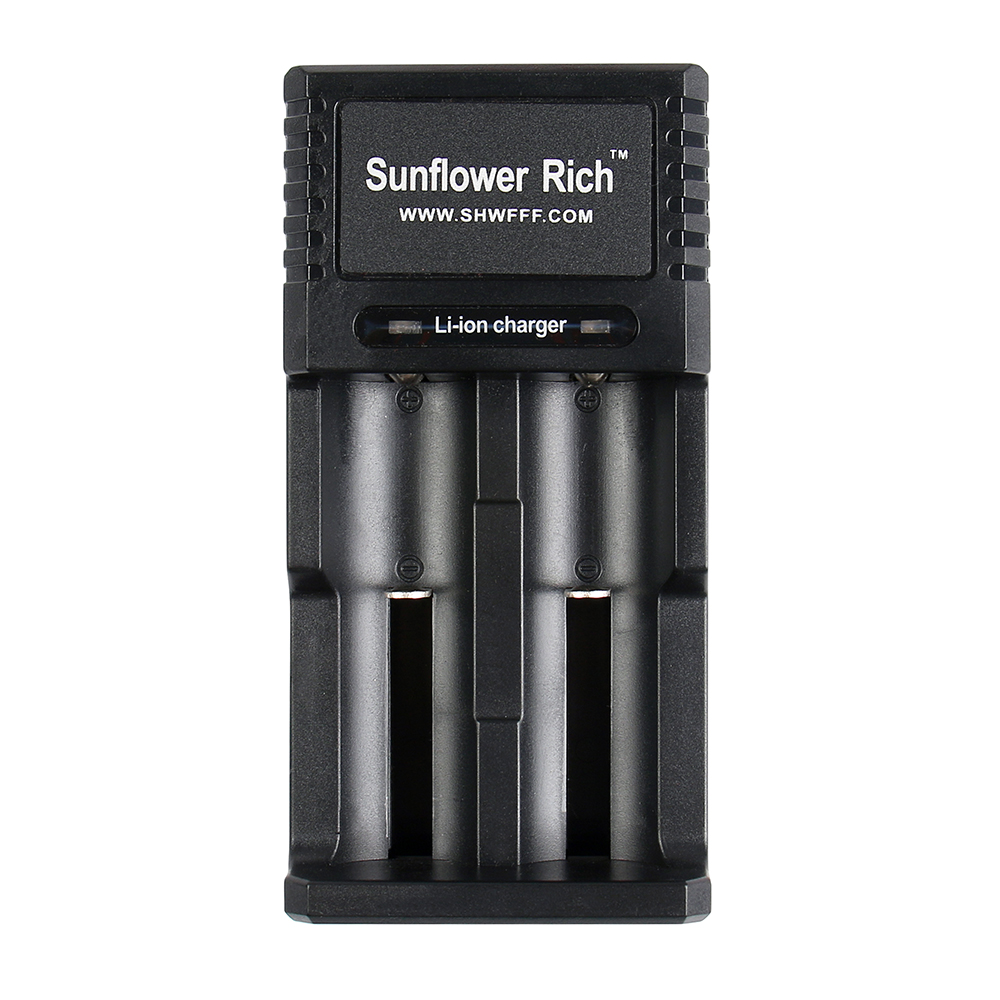

| Productname: | Sunflower Rich Q5 USB Smart Charger 2Slots |
| Brand: | Sunflower Rich |
| Model: | Q5 |
| InputVoltage: | DC 5V |
| InputCurrent: | 2A |
| OutputVoltage: | DC3.7V |
| OutputCurrent: | 0.7A*2 |
| Applyto: | Common like:AA, AAA,18650, 16340, 14500, 18500, 18350 |
| Material: | Plastic |
| Color: | Black |
| Weight: | 172g(Excluding battery) |
| Size: | 130mmx66mmx35mm(LengthxWidthxThincknes) |
Features:∞Can charge 2 batteries simultaneously; Independent monitors and current for each battery slot.
∞ LED indicator lightdisplays charging parameters and progress.
∞Intelligent.Charger will automatically check the output current when the output current exceeds a safe value ,
the charger will automatically cut off the power supply..
∞Compatible with small capacity batteries.
∞Automatically stops charging when complete.
∞Short circuit protection
After the positive and negative short-circuit the charger , the charger will automatically cut off power to avoid being burned charger
∞Anti-reverse protection
When the battery compartment battery installed backwards , the charger will automatically cut off the power supply.
∞Overcharge protection
In the fast- charging battery is fully charged when the charger will automatically turn from the constant current constant voltage charging
(charging current is slowly getting smaller ) , leading to reduce the charge to prevent overcharging the battery life. F
∞Overcurrent protection
Charger will automatically check the output current when the output current exceeds a safe value , the charger will automatically cut off the power supply.
Package included:1 x Sunflower Rich Q5 USB Smart Charger
(Battery not included)1 x USB power cable
Instructions for use:∞Charge Status Description:
~ When the battery into the state of charge, the charging indicator light from green to red.
~When the battery is fully charged, the charge indicator turns from red to green.
~When the battery charger is not connected, the status indicator light green.
∞Current Description:
~ When normal charge, constant current 500mA charge;
~ When the battery voltage is lower than 2.9 ~ 3.1V, the battery into the pre-charge state,and the typical pre-charge voltage is 3V;
~ When the battery voltage 4.1V ≦ Vb ≦ 4.2V, the battery enters the constant voltage state of charge, and the typical constant voltage charge is 4.15V.
